Use Case: Hi-C Analysis

Overview

This use case demonstrates how to use Coala to perform query-driven Hi-C analysis, including visualizing chromatin contact maps (cooler), calculating expected cis-contacts and compartment profiles, visualizing compartmentalization with saddle plots, and identifying boundaries between topologically associating domains (cooltools). We use a multi-resolution mcool file (test.mcool) containing Micro-C data for chromosomes 2 and 17 of HFF cell line , together with a view BED (view_hg38.tsv) and GC content track (gc.100000.tsv).

Setup

MCP Server Configuration

Start an MCP server with Hi-C analysis tools as shown in examples/Hi-C/Hi-C_mp.py:

from coala.mcp_api import mcp_api
import os
base_dir = os.path.dirname(__file__)

mcp = mcp_api(host='0.0.0.0', port=8000)
mcp.add_tool(os.path.join(base_dir, 'cooler_dump.cwl'))
mcp.add_tool(os.path.join(base_dir, 'cooler_show.cwl'))
mcp.add_tool(os.path.join(base_dir, 'cooltools_eigs_cis.cwl'))
mcp.add_tool(os.path.join(base_dir, 'cooltools_expected_cis.cwl'))
mcp.add_tool(os.path.join(base_dir, 'cooltools_genome_gc.cwl'))
mcp.add_tool(os.path.join(base_dir, 'cooltools_insulation.cwl'))
mcp.add_tool(os.path.join(base_dir, 'cooltools_saddle.cwl'))
mcp.serve()

This server exposes tools from cooler and cooltools:

• cooler_show: Display contact matrices for specified chromosomes and resolutions
• cooltools_expected_cis: Calculate expected Hi-C signal for cis regions (decay curve)
• cooltools_eigs_cis: Compute compartment profiles via eigenvalue decomposition with optional GC phasing
• cooltools_saddle: Generate saddle plots from eigenvectors and expected contacts
• cooltools_insulation: Calculate diamond insulation scores and call topologically associating domains (TAD) boundaries

MCP Client Configuration

Configure your MCP client (e.g., Claude Desktop, Cursor) to connect to the MCP server:

{
    "mcpServers": {
        "user-hi_c": {
            "command": "python",
            "args": ["/path/to/examples/Hi-C/Hi-C_mp.py"]
        }
    }
}

Note: Replace /path/to/examples/Hi-C/Hi-C_mp.py with the actual path to the Hi-C_mp.py file in your workspace.

Data Sets

The data file (test.mcool) is from the Micro-C study on HFF cell line (see cooltools external test files). Place view_hg38.tsv, gc.100000.tsv, and bins.100000.tsv from the examples/Hi-C directory in the same working directory as test.mcool for the full workflow.

Use Case Workflow

The workflow uses test.mcool at multiple resolutions (10 kb, 100 kb, 1 Mb) and the view file view_hg38.tsv defining chr2_p, chr2_q, chr17_p, and chr17_q.

Step 1: Show Contact Map

User Query:

Here is a mcool file for the Hi-C data: test.mcool. Show the contact map on chromosome 2 with 1Mb resolution. Save the output to working directory.

Tool Invocation:

{
  "tool": "cooler_show",
  "parameters": {
    "data": [
      {
        "fcool": "/path/to/examples/Hi-C/test.mcool",
        "uri": "resolutions/1000000",
        "range": "chr2:0-242193529",
        "output": "/path/to/working_dir/contact_map_chr2_1mb.png"
      }
    ]
  }
}

Tool Response:

{
  "out": {
    "location": "file:///var/folders/.../contact_map_chr2_1mb.png",
    "basename": "contact_map_chr2_1mb.png",
    "class": "File",
    "size": 164916
  },
  "tool_name": "cooler_show",
  "tool_version": "quay.io/biocontainers/cooltools:0.7.1--py311h93dcfea_3"
}

Chat Response:

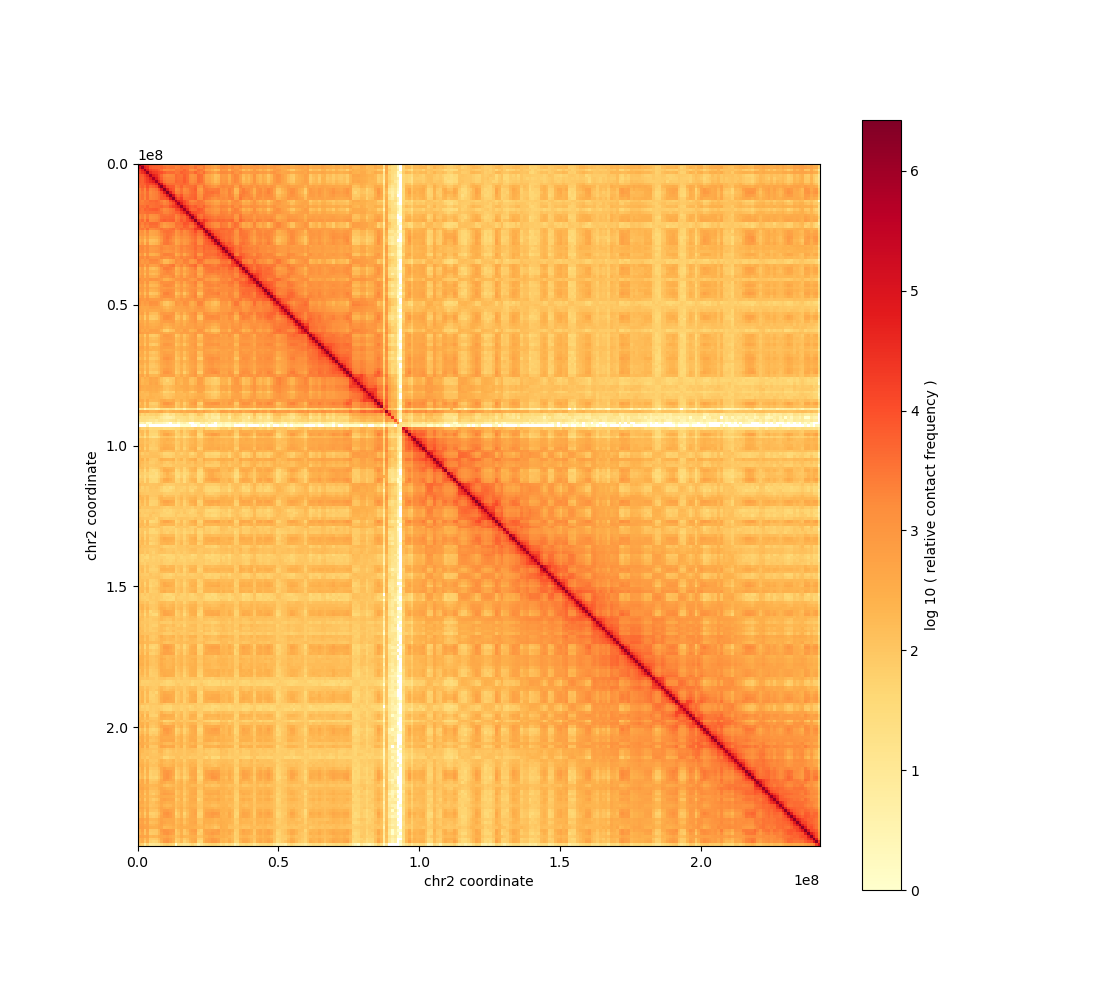

The chromosome 2 contact map at 1 Mb resolution has been generated and saved to your working directory as contact_map_chr2_1mb.png.

The image is a 242×242 contact matrix for chr2 (0–242,193,529 bp), showing Hi-C contact frequency. The MCP tool wrote the figure to a temp path; it was then copied to the working directory.

User Query:

How about chr17?

Tool Invocation:

{
  "tool": "cooler_show",
  "parameters": {
    "data": [
      {
        "fcool": "/path/to/examples/Hi-C/test.mcool",
        "uri": "resolutions/1000000",
        "range": "chr17:0-83257441",
        "output": "/path/to/working_dir/contact_map_chr17_1mb.png"
      }
    ]
  }
}

Tool Response:

{
  "out": {
    "location": "file:///var/folders/.../contact_map_chr17_1mb.png",
    "basename": "contact_map_chr17_1mb.png",
    "class": "File",
    "size": 52278
  },
  "tool_name": "cooler_show",
  "tool_version": "quay.io/biocontainers/cooltools:0.7.1--py311h93dcfea_3"
}

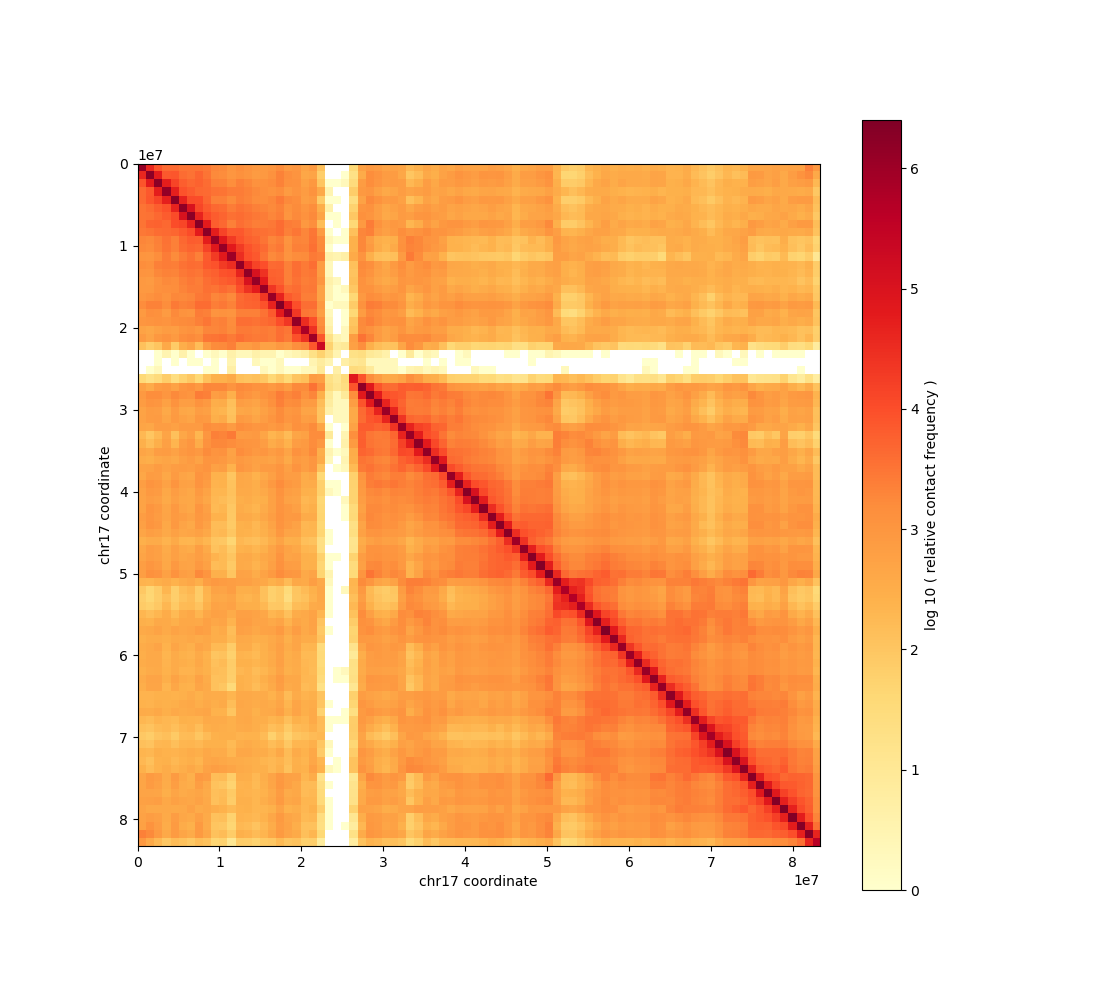

Chat Response:

The chromosome 17 contact map at 1 Mb resolution has been generated and saved as contact_map_chr17_1mb.png. Chr17 is shorter than chr2, so the matrix is smaller (~83×83 bins).

The contact map is a 2D heatmap of Hi-C contact frequency, reflecting 3D genome folding. Warmer colors indicate higher contact frequency; structures such as compartments and TADs appear as patterns in the matrix.

---

Step 2: Calculate Expected Cis-Contacts

User Query:

Now, let's calculate the expected contacts in 100k bp resolution in the regions defined in view_hg38.tsv file.

Tool Invocation:

{
  "tool": "cooltools_expected_cis",
  "parameters": {
    "data": [
      {
        "cool_file": "/path/to/examples/Hi-C/test.mcool",
        "uri": "resolutions/100000",
        "output_filename": "/path/to/working_dir/expected_100kb.tsv",
        "view_bed": "/path/to/examples/Hi-C/view_hg38.tsv"
      }
    ]
  }
}

Tool Response:

{
  "expected_tsv": {
    "location": "file:///var/folders/.../expected_100kb.tsv",
    "basename": "expected_100kb.tsv",
    "class": "File",
    "size": 397532
  },
  "tool_name": "cooltools_expected_cis",
  "tool_version": "quay.io/biocontainers/cooltools:0.7.1--py311h93dcfea_3"
}

Chat Response:

Expected cis contacts were computed at 100 kb resolution for the regions in view_hg38.tsv (chr2_p, chr2_q, chr17_p, chr17_q) and saved to expected_100kb.tsv.

The TSV contains columns: region1, region2, dist, dist_bp, contact_frequency, n_total, n_valid, count.sum, balanced.sum, count.avg, balanced.avg. Each row is a region pair and genomic distance bin; contact_frequency is the expected (balanced) contact value used for normalization and saddle plots.

User Query:

Please show me the first 10 rows of the calculated expected contacts result.

Chat Response:

First 10 data rows of expected_100kb.tsv (header + 10 rows):

region1	region2	dist	dist_bp	contact_frequency	n_total	n_valid	count.sum	balanced.sum	count.avg	balanced.avg
chr2_p	chr2_p	0	0	nan	939	878	nan	nan	nan	nan
chr2_p	chr2_p	1	100000	nan	938	876	nan	nan	nan	nan
chr2_p	chr2_p	2	200000	0.0747	937	874	2738583.0	65.29	2922.71	0.0747
chr2_p	chr2_p	3	300000	0.0470	936	872	1739972.0	41.01	1858.94	0.0470
chr2_p	chr2_p	4	400000	0.0327	935	870	1184707.0	28.47	1267.07	0.0327
chr2_p	chr2_p	5	500000	0.0244	934	868	868701.0	21.19	930.09	0.0244
chr2_p	chr2_p	6	600000	0.0191	933	866	669908.0	16.51	718.02	0.0191
chr2_p	chr2_p	7	700000	0.0154	932	864	528838.0	13.29	567.42	0.0154
chr2_p	chr2_p	8	800000	0.0127	931	862	430768.0	10.93	462.69	0.0127
chr2_p	chr2_p	9	900000	0.0107	930	860	358274.0	9.16	385.24	0.0107

These are chr2_p vs chr2_p at 0–900 kb; contact_frequency decreases with distance. Rows with dist 0 and 1 are nan (diagonal/adjacent often excluded).

---

Step 3: Generate Compartment Profiles

User Query:

Next, we want to obtain the compartment profiles in 100k bp resolution. Let's use the GC content profile in gc.100000.tsv.

Tool Invocation:

{
  "tool": "cooltools_eigs_cis",
  "parameters": {
    "data": [
      {
        "cool_file": "/path/to/examples/Hi-C/test.mcool",
        "uri": "resolutions/100000",
        "out_prefix": "/path/to/working_dir/compartment_100kb",
        "phasing_track_file": "/path/to/examples/Hi-C/gc.100000.tsv",
        "phasing_track_col": "GC",
        "view": "/path/to/examples/Hi-C/view_hg38.tsv"
      }
    ]
  }
}

Tool Response:

{
  "bigwig_out": null,
  "eigenvectors": {
    "location": "file:///var/folders/.../compartment_100kb.cis.vecs.tsv",
    "basename": "compartment_100kb.cis.vecs.tsv",
    "class": "File",
    "size": 202492
  },
  "lambdas": {
    "location": "file:///var/folders/.../compartment_100kb.cis.lam.txt",
    "basename": "compartment_100kb.cis.lam.txt",
    "class": "File",
    "size": 213
  },
  "tool_name": "cooltools_eigs_cis",
  "tool_version": "hubentu/cooltools_bedwig:0.7.1_2.10"
}

Chat Response:

Compartment profiles were computed with cooltools eigs-cis using GC from gc.100000.tsv for phasing. Outputs in the working directory:

1. compartment_100kb.cis.vecs.tsv — Eigenvectors per 100 kb bin: chrom, start, end, weight, E1. E1 is the first principal component (compartment signal), phased so positive E1 aligns with GC-rich (B/active) and negative with GC-poor (A/inactive).
2. compartment_100kb.cis.lam.txt — Eigenvalue per region (chr2_p, chr2_q, chr17_p, chr17_q).

User Query:

Please show me the first 10 rows of the output file containing eigenvectors. Please only show the first eigenvector.

Chat Response:

First 10 rows of the eigenvectors file, first eigenvector (E1) only:

chrom	start	end	E1
chr2	0	100000	-1.567
chr2	100000	200000	-1.751
chr2	200000	300000	-0.368
chr2	300000	400000	-1.325
chr2	400000	500000	-1.432
chr2	500000	600000	-0.971
chr2	600000	700000	-0.157
chr2	700000	800000	-0.458
chr2	800000	900000	-0.772
chr2	900000	1000000	-0.475

These are the first 10 bins on chr2 (0–1 Mb). E1 values are negative in this range (A-like compartments); phasing was done with GC from gc.100000.tsv.

---

Step 4: Visualize Compartmentalization with Saddle Plot

User Query:

Next, we want to visualize the effect of compartmentalization using saddleplot, using our previously computed compartment profiles and expected cis-contacts.

Tool Invocation:

{
  "tool": "cooltools_saddle",
  "parameters": {
    "data": [
      {
        "cool_file": "/path/to/examples/Hi-C/test.mcool",
        "uri": "resolutions/100000",
        "expected_file": "/path/to/working_dir/expected_100kb.tsv",
        "expected_col": "balanced.avg",
        "track_file": "/path/to/working_dir/compartment_100kb.cis.vecs.tsv",
        "track_col": "E1",
        "out_prefix": "/path/to/working_dir/saddle_100kb",
        "qrange": [0.02, 0.98],
        "fig_format": "png",
        "view": "/path/to/examples/Hi-C/view_hg38.tsv"
      }
    ]
  }
}

Tool Response:

{
  "saddle_data": {
    "location": "file:///var/folders/.../saddle_100kb.saddledump.npz",
    "basename": "saddle_100kb.saddledump.npz",
    "class": "File",
    "size": 91075
  },
  "saddle_plot": {
    "location": "file:///var/folders/.../saddle_100kb.png",
    "basename": "saddle_100kb.png",
    "class": "File",
    "size": 25045
  },
  "saddle_tsv": {
    "location": "file:///var/folders/.../saddle_100kb.digitized.tsv",
    "basename": "saddle_100kb.digitized.tsv",
    "class": "File",
    "size": 87297
  },
  "tool_name": "cooltools_saddle",
  "tool_version": "quay.io/biocontainers/cooltools:0.7.1--py311h93dcfea_3"
}

Chat Response:

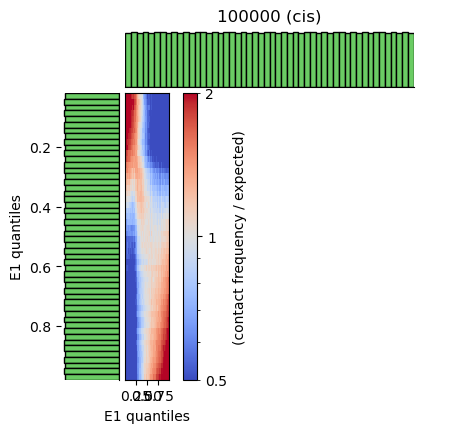

The saddle plot was generated with cooltools saddle using the existing eigenvectors (E1) and expected contacts (balanced.avg), with view_hg38.tsv for regions. Outputs saved:

1. saddle_100kb.png — Saddle plot: contact enrichment (observed/expected) binned by E1 on both axes. A/A and B/B corners show enrichment; A/B and B/A show depletion.
2. saddle_100kb.saddledump.npz — Saddle matrix data.
3. saddle_100kb.digitized.tsv — Digitized saddle values in TSV form.

Saddle plot: inactive–inactive (top-left) and active–active (bottom-right) show higher relative contact frequency (more red); inactive–active show lower frequency. Diagonal enrichment reflects compartment structure.

---

Step 5: Call topologically associating domains (TAD) boundaries

User Query:

Lastly, let's find the boundaries between TADs. Let's use higher resolution data in 10kb, to define boundaries in window size 100 kb and 200 kb, using Li method for insulation scores.

Tool Invocation:

{
  "tool": "cooltools_insulation",
  "parameters": {
    "data": [
      {
        "cool_file": "/path/to/examples/Hi-C/test.mcool",
        "uri": "resolutions/10000",
        "window": [100000, 200000],
        "output_filename": "/path/to/working_dir/insulation_10kb.tsv",
        "threshold": "Li",
        "view": "/path/to/examples/Hi-C/view_hg38.tsv"
      }
    ]
  }
}

Tool Response:

{
  "insulation_bigwigs": null,
  "insulation_tsv": {
    "location": "file:///var/folders/.../insulation_10kb.tsv",
    "basename": "insulation_10kb.tsv",
    "class": "File",
    "size": 3556085
  },
  "tool_name": "cooltools_insulation",
  "tool_version": "hubentu/cooltools_bedwig:0.7.1_2.10"
}

Chat Response:

TAD boundaries were computed with cooltools insulation at 10 kb resolution, windows 100 kb and 200 kb, and Li threshold. Output:

insulation_10kb.tsv — One row per 10 kb bin. Columns include chrom, start, end, region, is_bad_bin; log2_insulation_score_100000/200000; n_valid_pixels; boundary_strength_100000/200000; is_boundary_100000 and is_boundary_200000 (True = TAD boundary at that window). Boundaries are called using the Li method on the insulation score distribution.

User Query:

Please show me the first 10 rows of the output file of insulation site analysis.

Chat Response:

First 10 rows of insulation_10kb.tsv:

chrom	start	end	region	is_bad_bin	log2_insulation_score_100000	n_valid_pixels_100000	log2_insulation_score_200000	n_valid_pixels_200000	boundary_strength_100000	boundary_strength_200000	is_boundary_100000	is_boundary_200000
chr2	0	10000	chr2_p	True	nan	0.0	nan	0.0	nan	nan	False	False
chr2	10000	20000	chr2_p	False	0.692	8.0	1.123	18.0	nan	nan	False	False
chr2	20000	30000	chr2_p	False	0.761	17.0	1.197	37.0	nan	nan	False	False
chr2	30000	40000	chr2_p	False	0.767	27.0	1.212	57.0	nan	nan	False	False
chr2	40000	50000	chr2_p	False	0.675	37.0	1.135	77.0	nan	nan	False	False
chr2	50000	60000	chr2_p	False	0.596	47.0	1.062	97.0	nan	nan	False	False
chr2	60000	70000	chr2_p	False	0.558	57.0	1.006	117.0	nan	nan	False	False
chr2	70000	80000	chr2_p	False	0.489	67.0	0.919	137.0	nan	nan	False	False
chr2	80000	90000	chr2_p	False	0.437	77.0	0.851	157.0	nan	nan	False	False
chr2	90000	100000	chr2_p	False	0.387	87.0	0.794	177.0	nan	nan	False	False

The first bin is is_bad_bin=True (edge); the rest have decreasing log2 insulation scores. None of these first 10 bins are TAD boundaries (is_boundary_100000 and is_boundary_200000 are False).

---

Key Benefits

1. Natural language interface: Hi-C analysis from contact maps to TAD boundaries via simple queries.
2. Tool chain: Expected contacts → Compartment Profiles (with GC phasing) → Saddle plot; Insulation-based TAD boundaries uses the same view and resolution choices.
3. Containerized execution: All tools run in specified Docker images (cooltools/cooltools_bedwig) with fixed versions.
4. Human-in-the-loop: Users can ask for different chromosomes, resolutions, window sizes, or inspect output rows via natural language.

Technical Details

Tool Execution

Tools run in Docker as defined in their CWL:

• cooler_show: cooler/cooltools (quay.io/biocontainers/cooltools:0.7.1)
• cooltools_expected_cis: cooltools 0.7.1
• cooltools_eigs_cis: hubentu/cooltools_bedwig:0.7.1_2.10 (eigenvectors + optional BigWig)
• cooltools_saddle: cooltools 0.7.1
• cooltools_insulation: hubentu/cooltools_bedwig:0.7.1_2.10

Main Parameters

Tool	Parameter	Example	Description
cooler_show	uri	resolutions/1000000	Resolution path in mcool
cooler_show	range	chr2:0-242193529	UCSC-style region
cooltools_expected_cis	uri	resolutions/100000	Resolution for expected curve
cooltools_expected_cis	view_bed	view_hg38.tsv	BED of regions to include
cooltools_eigs_cis	phasing_track_col	GC	Column in phasing file for E1 orientation
cooltools_saddle	qrange	[0.02, 0.98]	Quantile range for E1 bins
cooltools_saddle	track_col, expected_col	E1, balanced.avg	Eigenvector and expected value columns
cooltools_insulation	uri	resolutions/10000	Base resolution for insulation
cooltools_insulation	window	[100000, 200000]	Window sizes in bp
cooltools_insulation	threshold	Li	Method to call boundaries (Li/Otsu or float)

Data Flow

1. Contact maps: The multi-resolution Hi-C file (mcool) is read at a chosen resolution and genomic range; cooler show renders the contact matrix as a heatmap image for the requested chromosome(s).
2. Expected contacts: cooltools expected-cis computes the average contact frequency as a function of genomic distance within the regions defined in the view file, producing a decay curve used later for normalization and saddle plots.
3. Compartments: cooltools eigs-cis performs eigenvalue decomposition on the observed/expected contact matrix; the first eigenvector (E1) is the compartment signal, and a GC content track is used to phase it so that positive E1 corresponds to GC-rich (active) and negative to GC-poor (inactive) regions.
4. Saddle plot: cooltools saddle bins genomic bins by their E1 value and plots observed/expected contact enrichment between bin pairs; the resulting image shows whether A–A and B–B interactions are enriched (compartmentalization) and A–B depleted.
5. TAD boundaries: cooltools insulation computes a diamond insulation score at each bin; low scores mark boundaries between domains. The Li method is used to choose a threshold and flag bins as boundaries, yielding a table of insulation scores and boundary calls for each window size.

Output Files

Step	File	Description
1	contact_map_chr2_1mb.png	Contact matrix chr2, 1 Mb
1	contact_map_chr17_1mb.png	Contact matrix chr17, 1 Mb
2	expected_100kb.tsv	Expected cis contacts, 100 kb, view regions
3	compartment_100kb.cis.vecs.tsv	Eigenvectors (E1, …) per bin
3	compartment_100kb.cis.lam.txt	Eigenvalues per region
4	saddle_100kb.png	Saddle plot image
4	saddle_100kb.saddledump.npz	Saddle matrix data
4	saddle_100kb.digitized.tsv	Digitized saddle TSV
5	insulation_10kb.tsv	Insulation scores and boundary flags (100 kb & 200 kb windows)

Extending the Workflow

This use case can be extended to:

• Additional chromosomes or resolutions: Use cooler_show with other ranges or uri (e.g. resolutions/50000) for different resolutions.
• Compare conditions: Run expected, eigs, saddle, and insulation on multiple mcool files and compare compartment strength or TAD boundary sets.
• Custom views: Define new BED files for specific loci or chromosomes and reuse the same pipeline.
• Insulation with more windows: Add more window sizes in the insulation tool (e.g. 50 kb, 500 kb) for multi-scale TAD analysis.
• Export tracks: Use BigWig output from eigs-cis or insulation (when enabled) for genome-browser visualization.
• Downstream integration: Feed TAD boundaries or compartment E1 into enrichment tools, gene-set analysis, or correlation with RNA-seq/ATAC-seq.
• Saddle at other resolutions: Recompute expected and eigenvectors at 50 kb or 250 kb and run saddle for different scales.

All of these extensions can be done by calling the same MCP tools with different parameters via natural language.

References

• cooler — Library and format for Hi-C contact matrices
• cooltools — Analysis and visualization for Hi-C data
• cooltools external test files — Source of test.mcool and related data
